Product Design
Transparent Extinguisher
Construction & Features

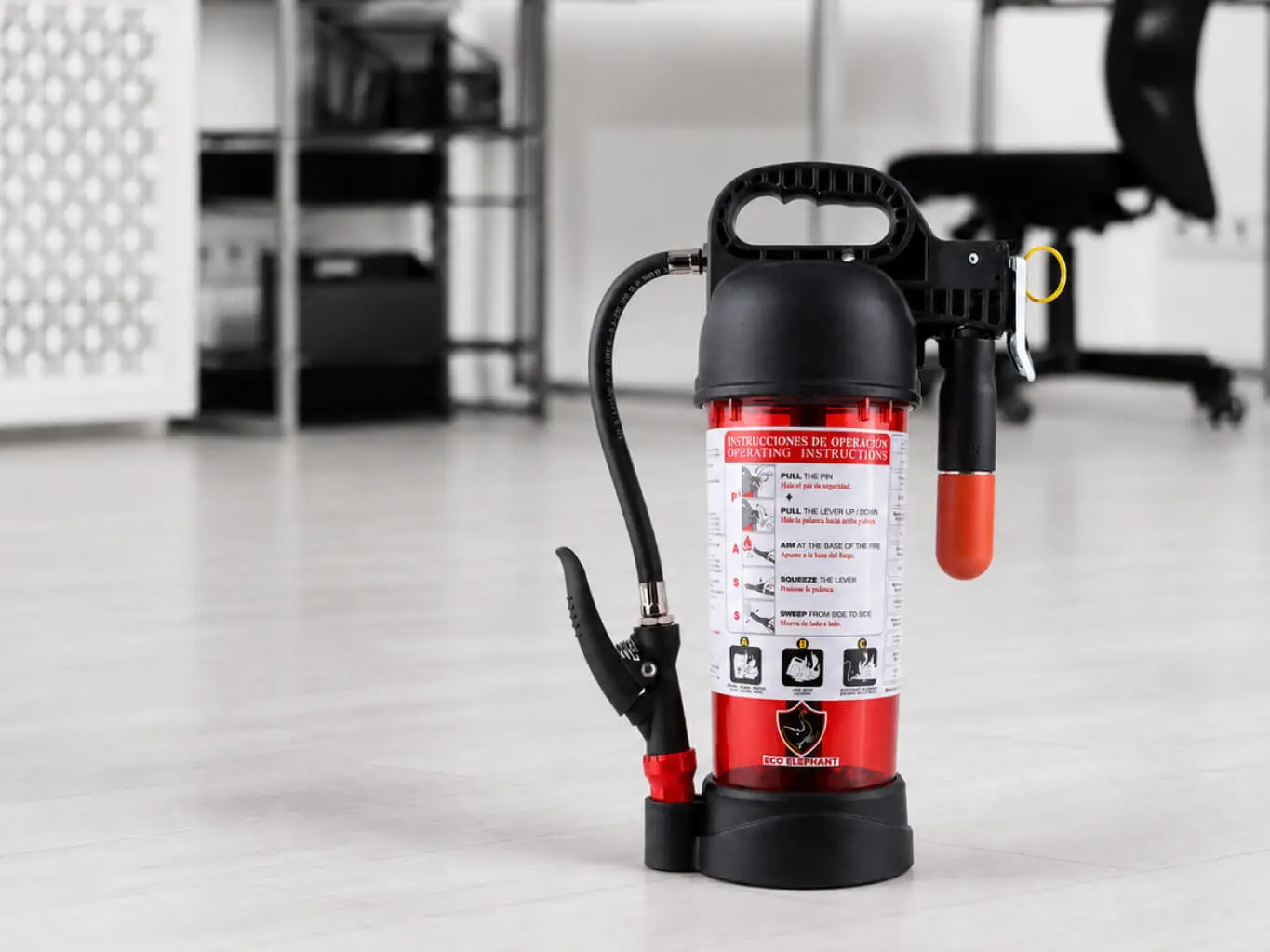

Eco Elephant, model EC500, is a hand-held ABC dry chemical extinguisher holding 2.27 kg of dry chemical powder, mono ammonium phosphate based, and rated for Class A, B, and C fires.
The body is molded in transparent materials with a 5.4 mm wall and a glass-fiber-reinforced nylon top plate, and it uses an external 30 g CO2 cartridge that pressurizes the unit only when you fire it, rather than holding the powder under constant pressure. It discharges for more than 10 seconds, reaches beyond 3 meters, and operates from 0 to 40 degrees Celsius.

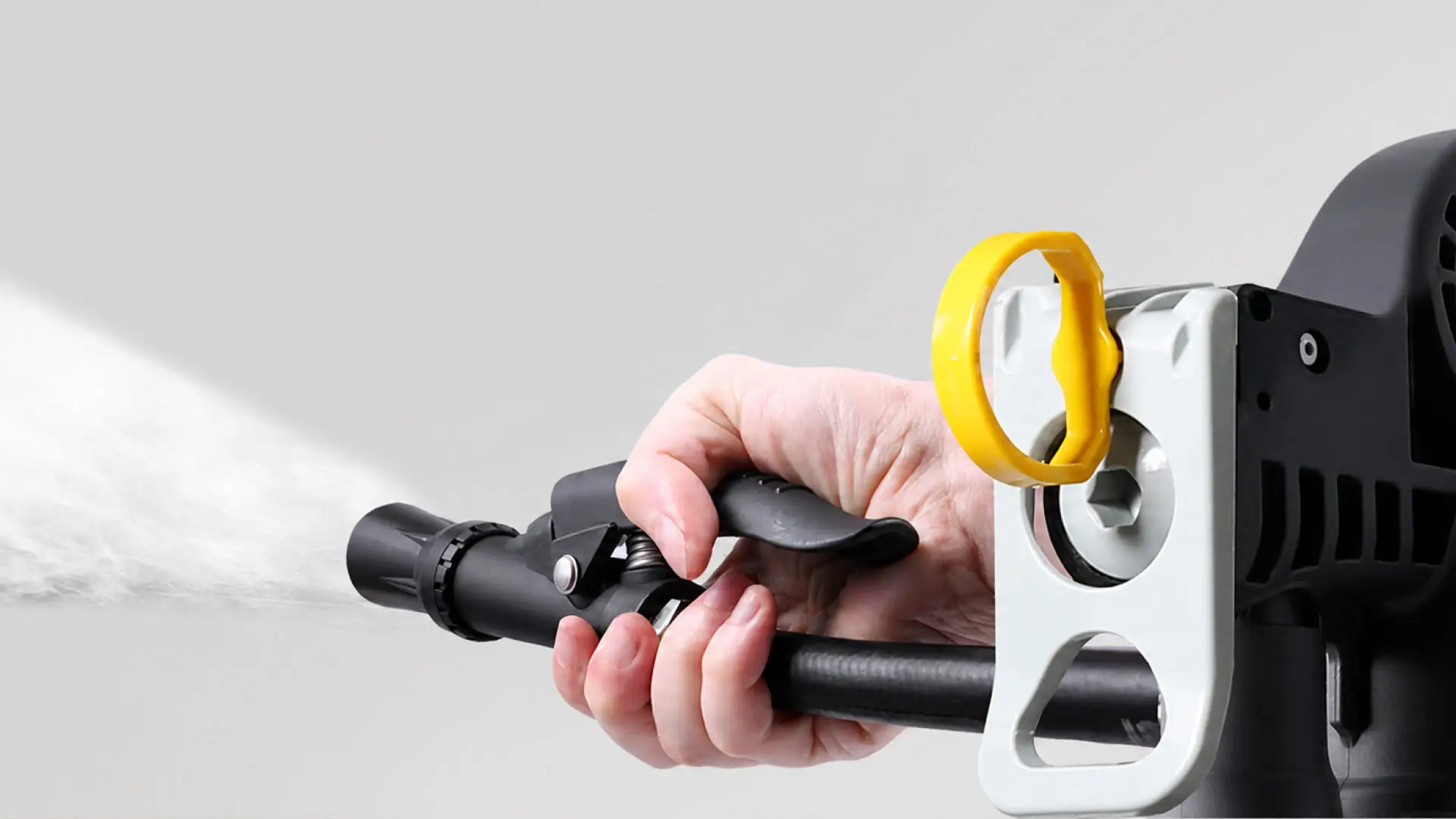

Because the shell is clear, you can read the powder condition at a glance, and the ergonomic handle follows the standard P.A.S.S. sequence, pull, aim, squeeze, sweep. The body is plastic throughout, so there is no metal to corrode and no coating to maintain.
MODEL EC500
SINGLE-PIECE MOLDING
2.27 KG ABC POWDER
CLASS A, B & C FIRES
SEE-THROUGH BODY
CHECK POWDER CONDITION AT A GLANCE.
Testing & Approval
Independent Approval
And In-House Testing
Eco Elephant holds Taiwan CFS type approval as fire safety equipment, granted to model EC500 in the name of Aplus Molds & Plastics, covering its rating for Class A, B, and C fires. We have separately demonstrated that rating in our own live fire tests against a Class A-2 wood crib and a Class B-4 oil tray.
Beyond the approval, we test every design element in our own laboratory. Units are frozen at 0 degrees for 12 hours, baked at 100 degrees for 70 days, dropped onto concrete upright, horizontal, and inverted, and held in salt spray for 240 hours, then discharged or impact checked to confirm they still operate. The body is hydrostatically pressurized to eight times its working pressure without fragmenting. This work runs on our own fatigue, hydrostatic, salt spray, leakage, and drop testers.
Taiwan CFS type approval, fire safety equipment (model EC500)
Live fire performance, Class A-2 and Class B-4
In-house environmental and destructive testing (freeze, bake, drop, salt spray, hydrostatic burst)
Maintenance & Lifecycle
Lower Upkeep
Safety & Environmental Impact
The external cartridge is what changes the ownership cost. A stored-pressure steel extinguisher holds its powder under constant CO2 pressure, which packs the powder down over time and calls for scheduled professional servicing to depressurize, loosen, and dry it. Eco Elephant keeps the powder loose until the moment you fire, so you can check its condition yourself through the clear body, and the plastic shell does not rust the way a steel cylinder does.
The clear material also carries a lower footprint, 0.4 to 0.5 tonnes of CO2 per tonne of plastic against about 1.7 tonnes for steel, and the body is fully recyclable at end of life. On safety, the external cartridge design avoids the stored-pressure and internal-cartridge burst risks that apply to conventional steel units.
Low Annual Upkeep
See-through Powder Check
Rust-free
Lower Carbon Footprint
Photos
Eco Elephant Gallery

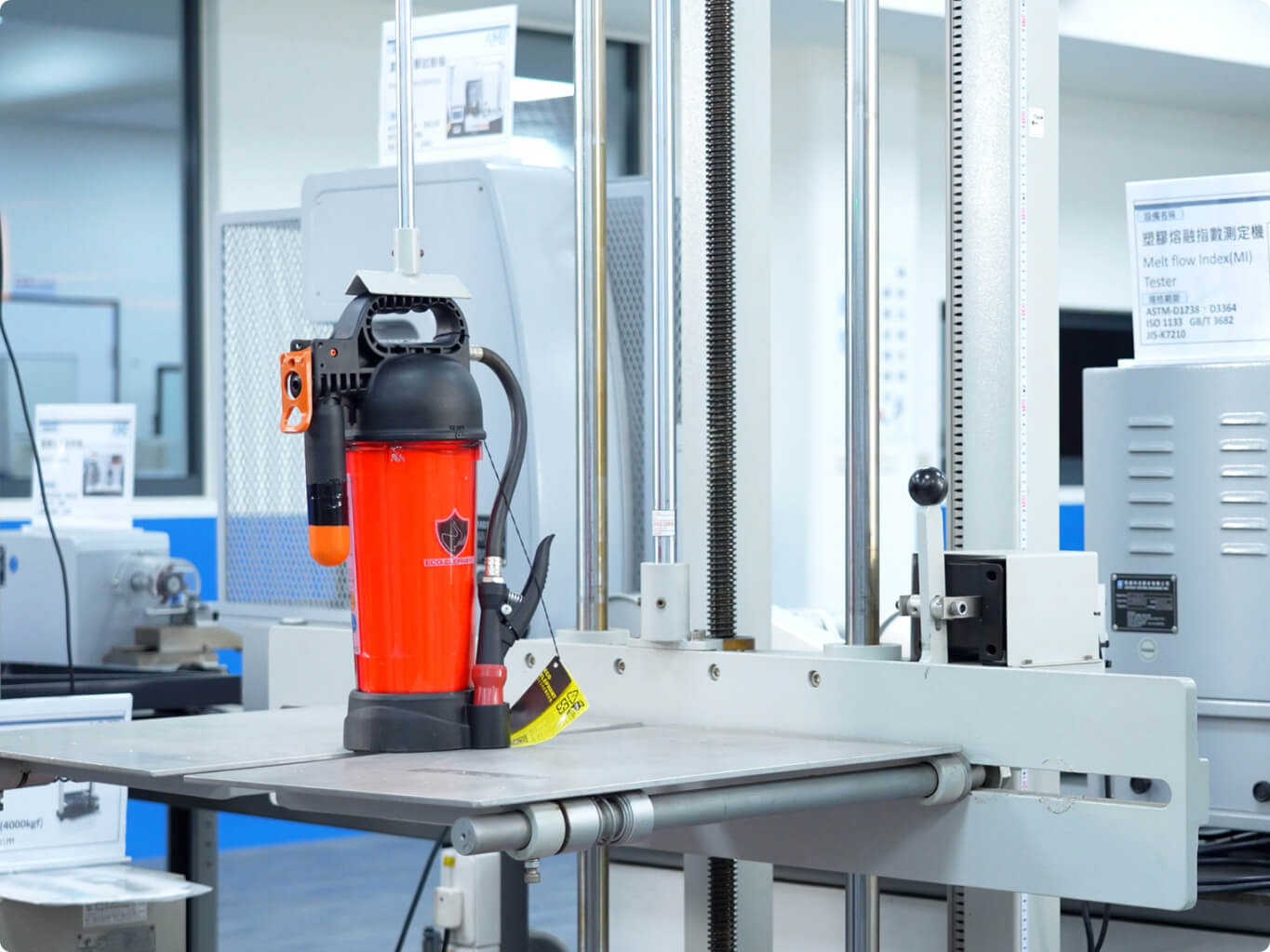

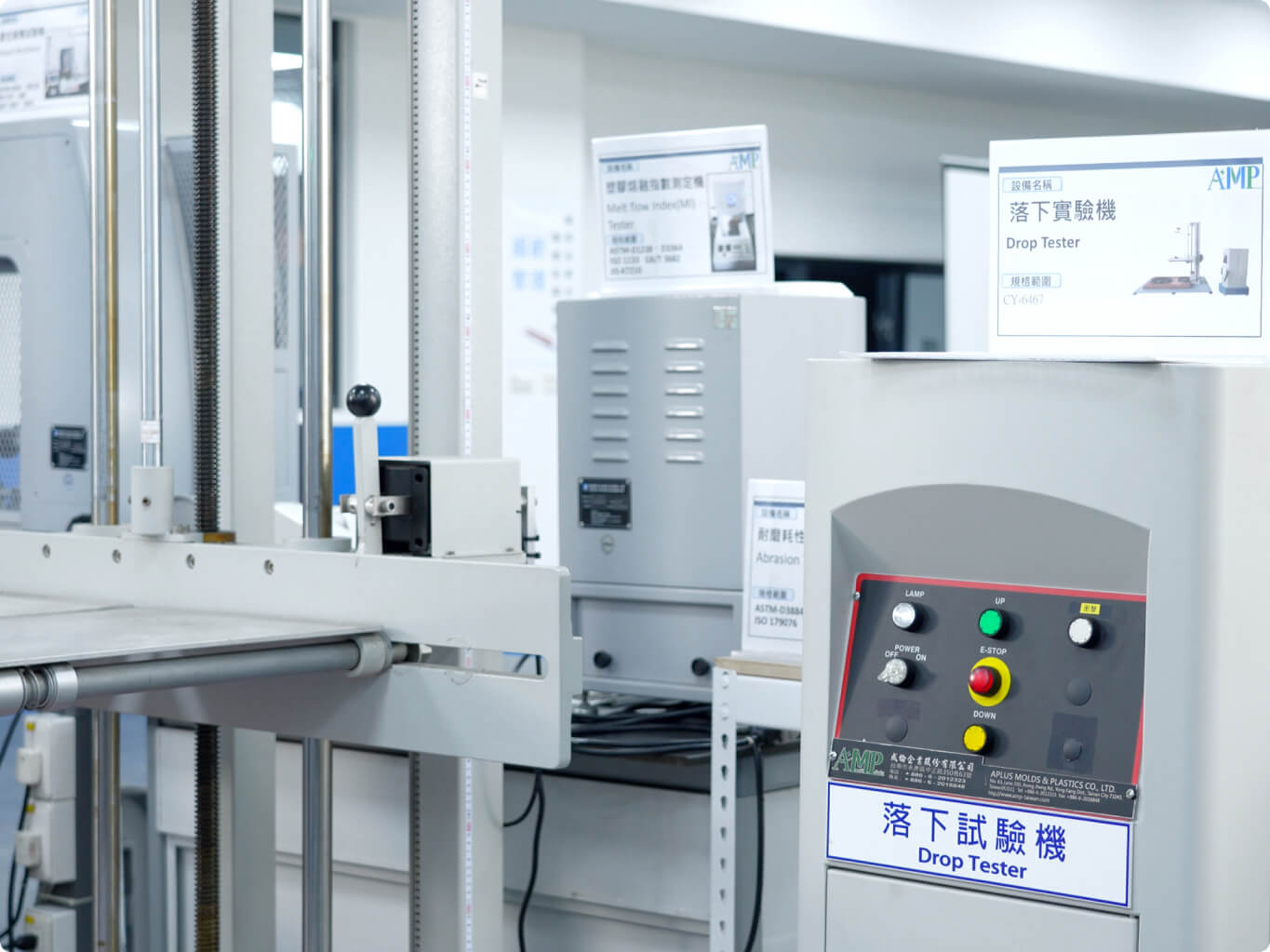

Drop tester laboratory AMP drop tester used to validate Eco Elephant extinguisher durability, with units dropped onto concrete to confirm they still operate after impact
Unit on test fixture Eco Elephant extinguisher positioned on an AMP test fixture for controlled mechanical evaluation in the quality lab

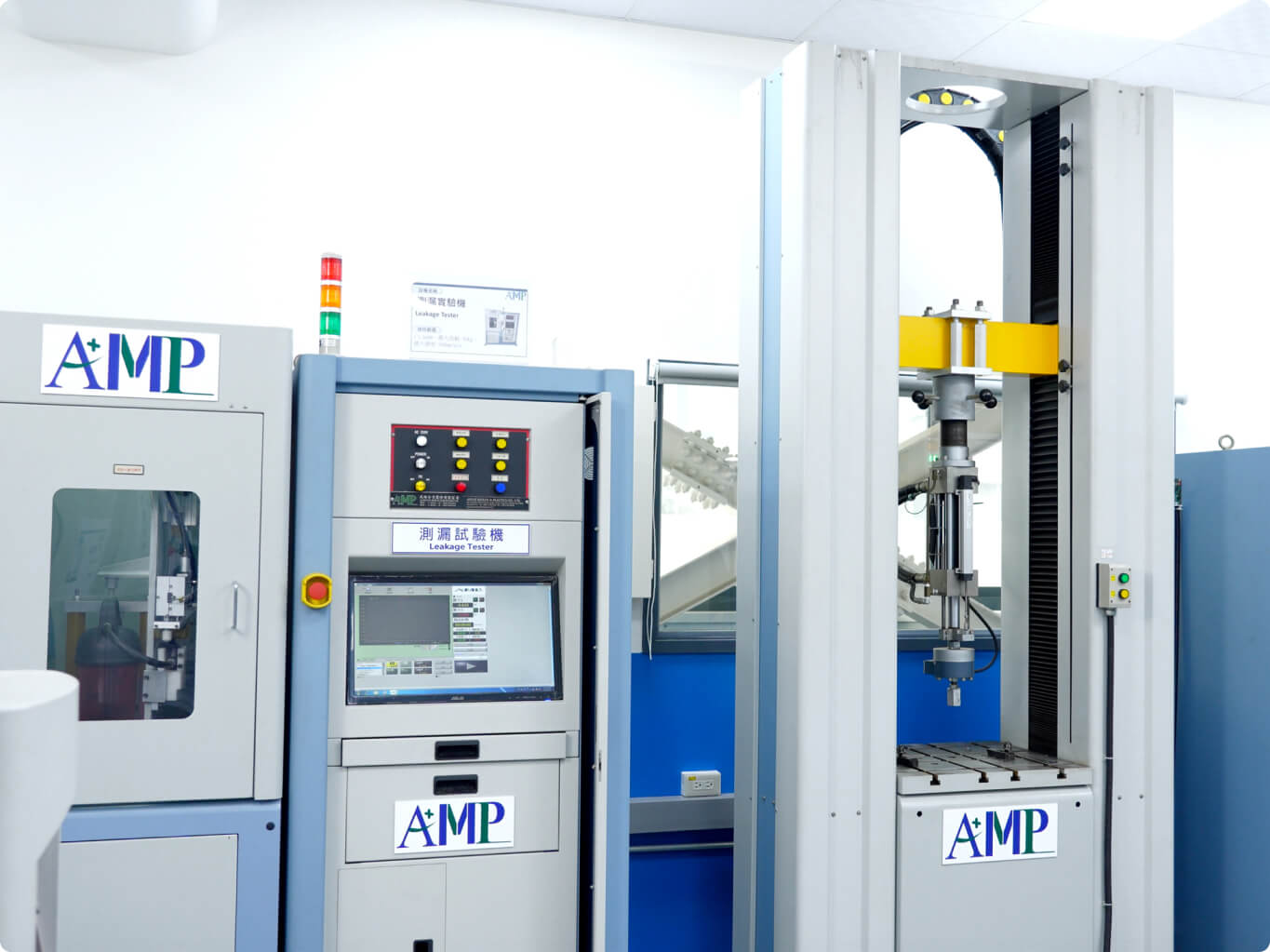

Leak & handle fatigue testing AMP leak and fatigue testers confirming Eco Elephant units hold pressure and the handle meets its service life

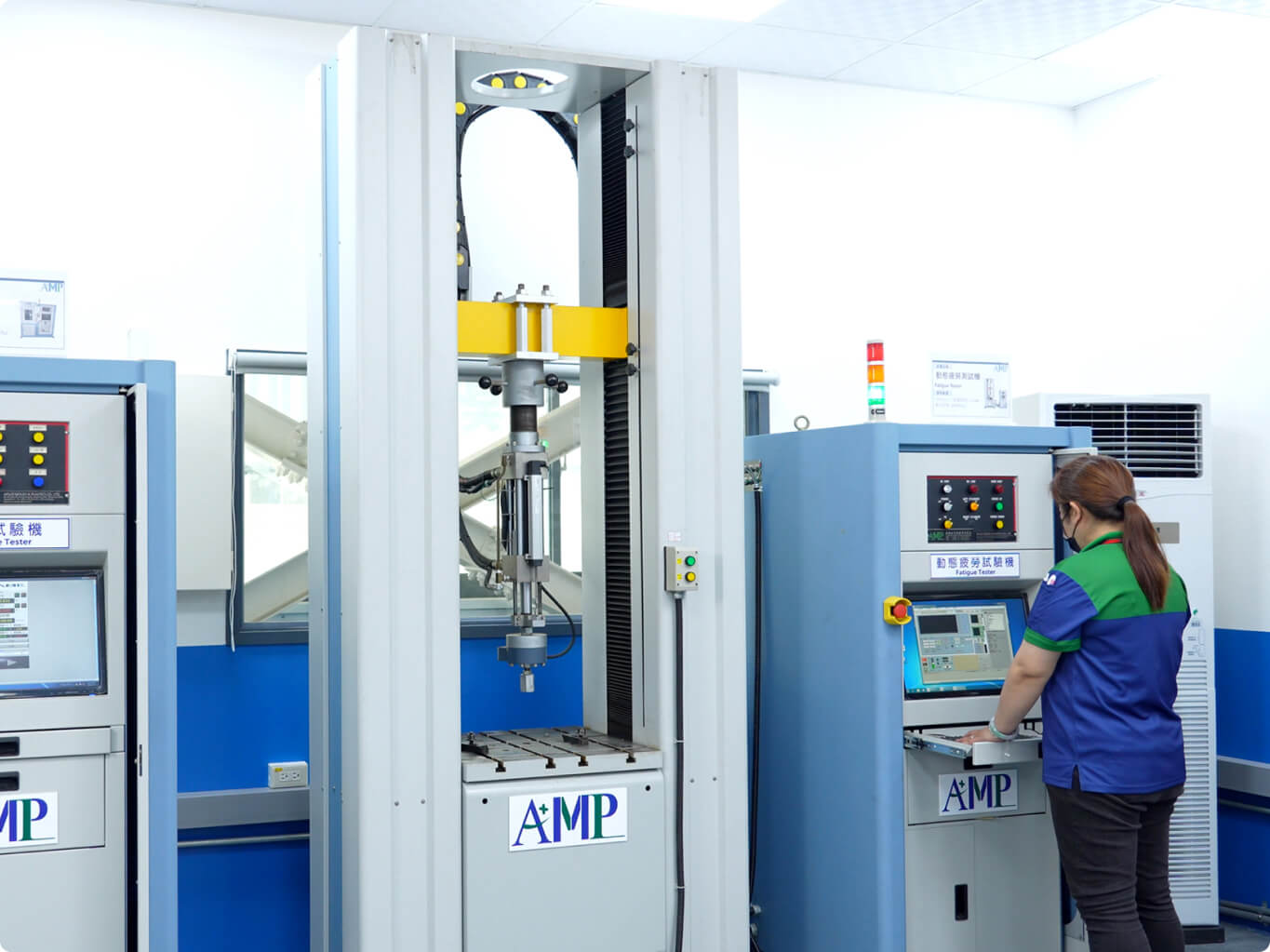

Fatigue tester station AMP technician monitoring the dynamic fatigue tester that cycles Eco Elephant components for long-term reliability

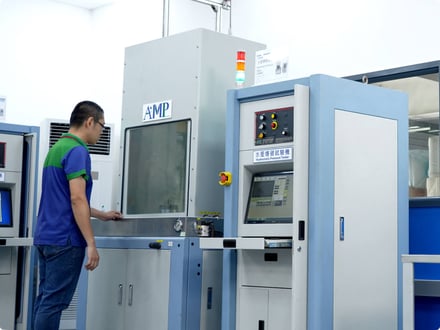

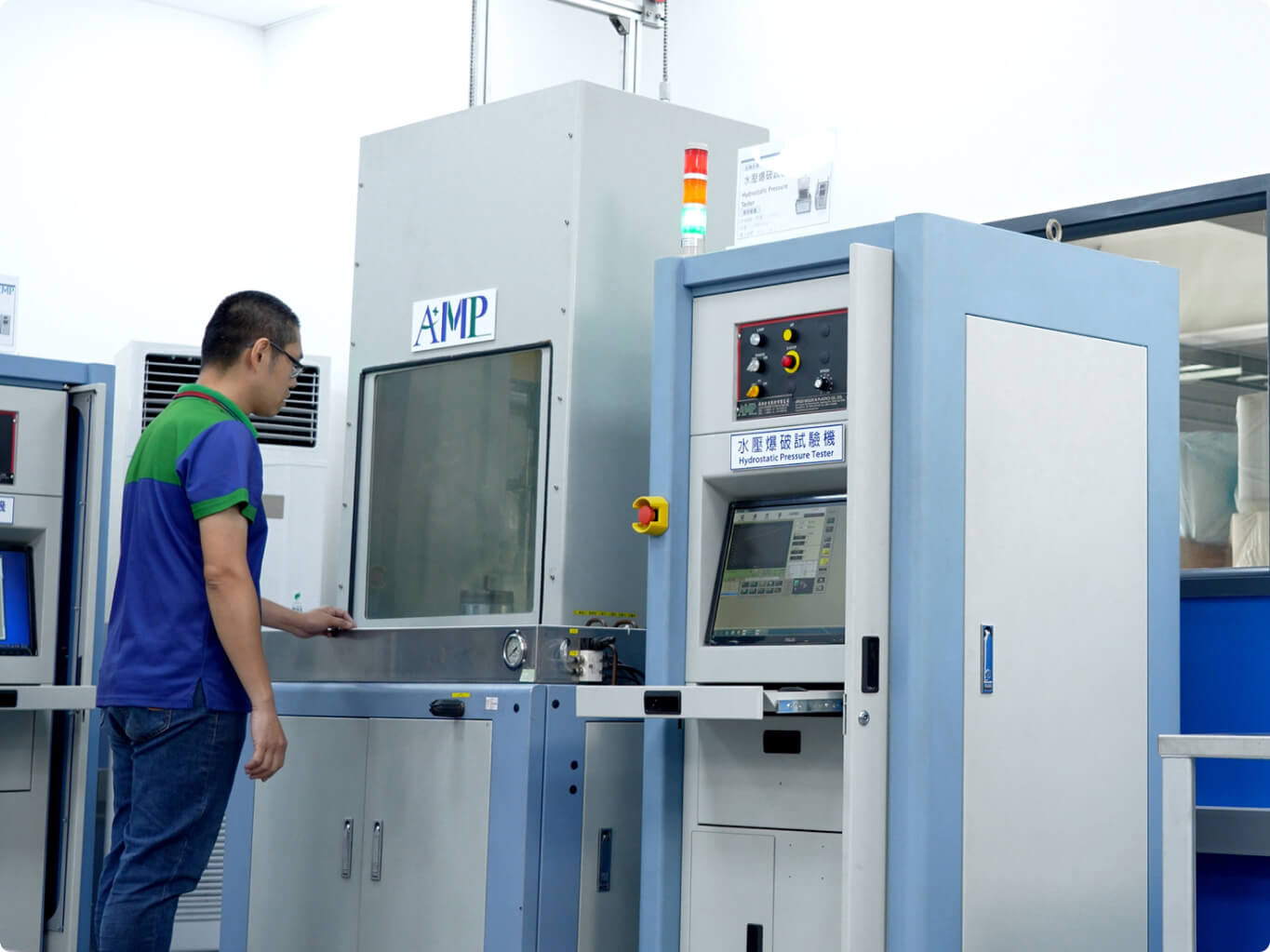

Hydrostatic pressure test AMP hydrostatic pressure tester verifying Eco Elephant body strength under elevated internal pressure

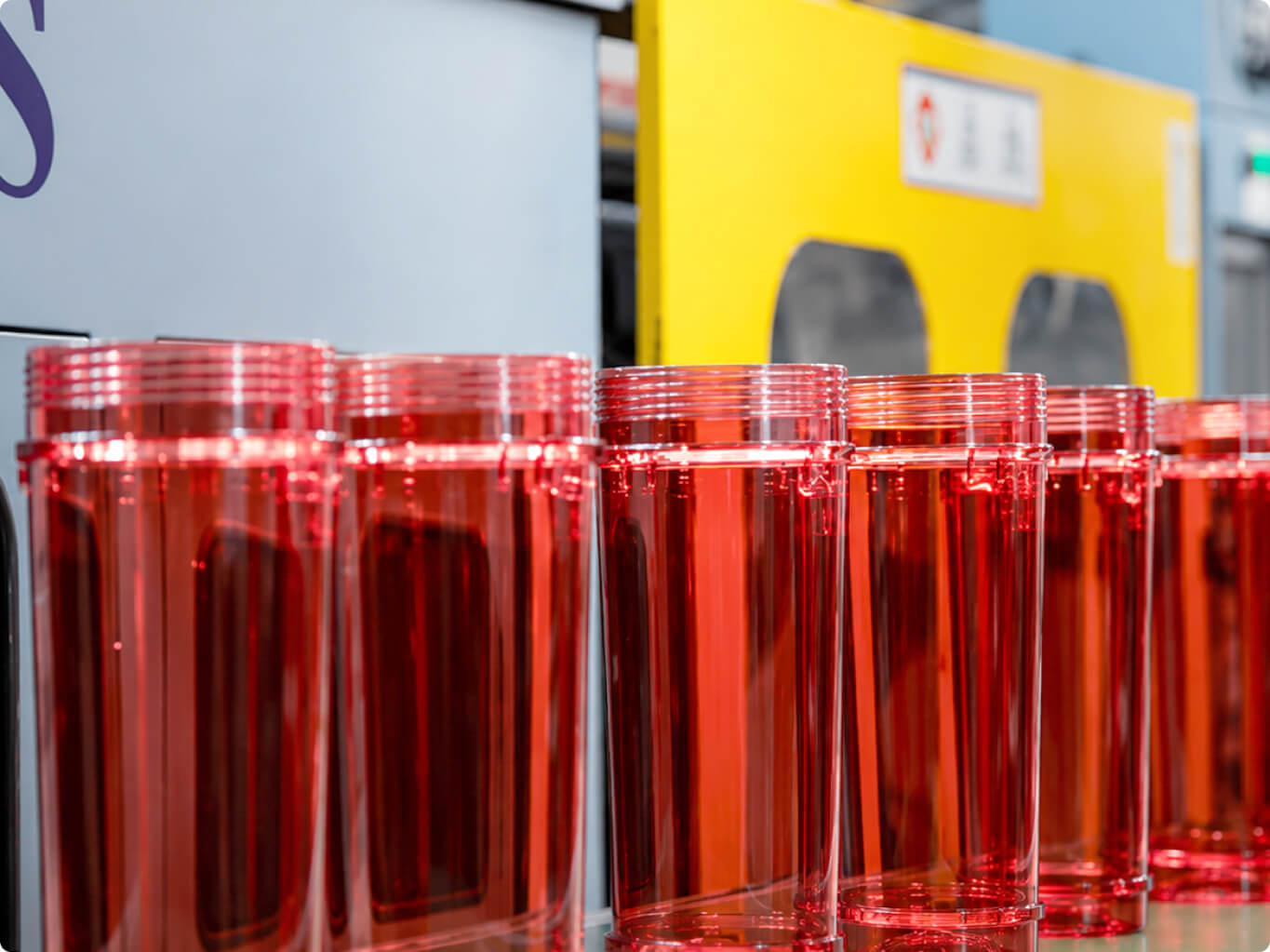

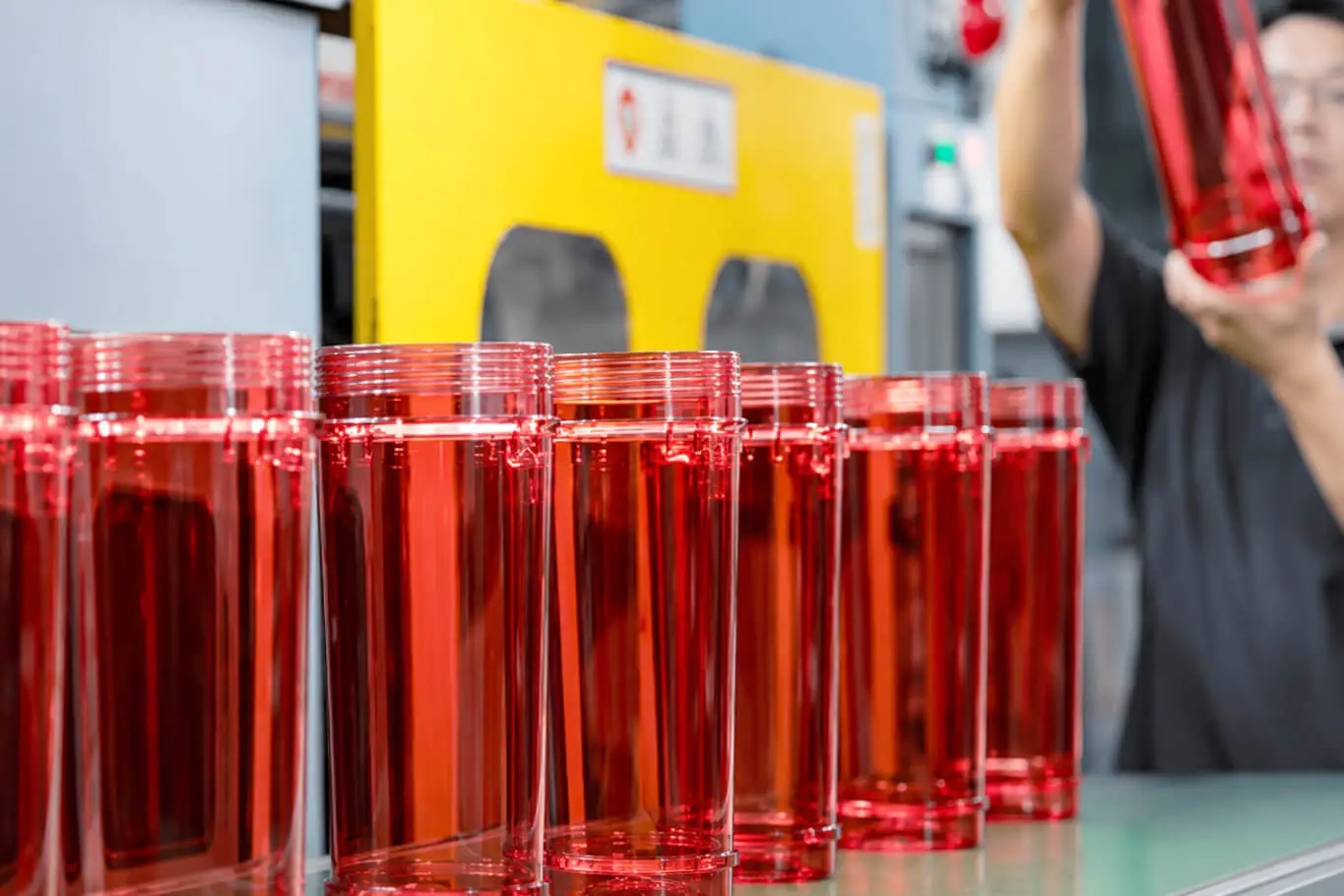

Transparent bodies on line Clear red Eco Elephant polycarbonate bodies staged on the AMP production line after molding

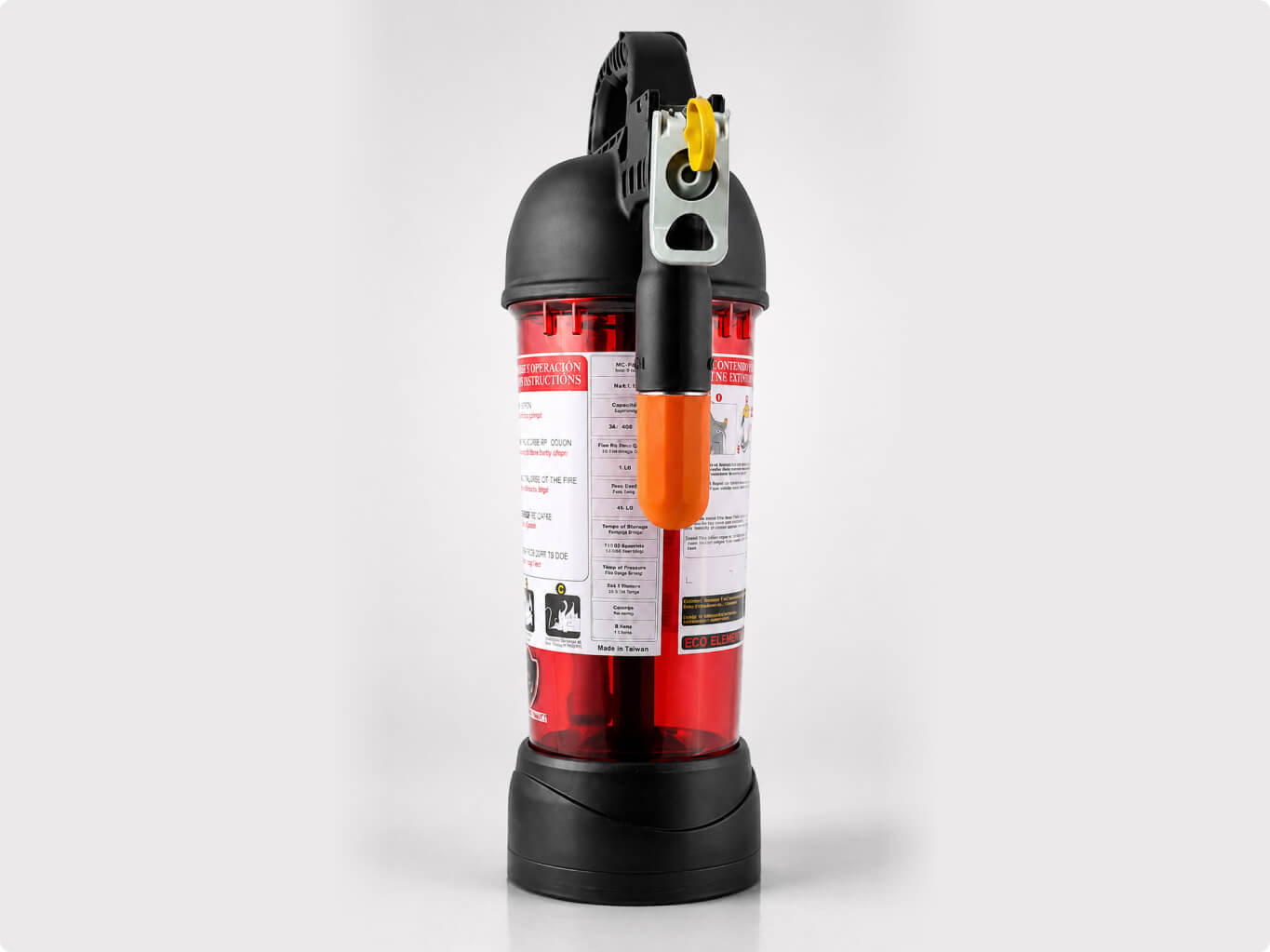

Eco Elephant EC500 Finished Eco Elephant transparent polycarbonate fire extinguisher with black head assembly and orange cylinder sleeve, made in Taiwan
