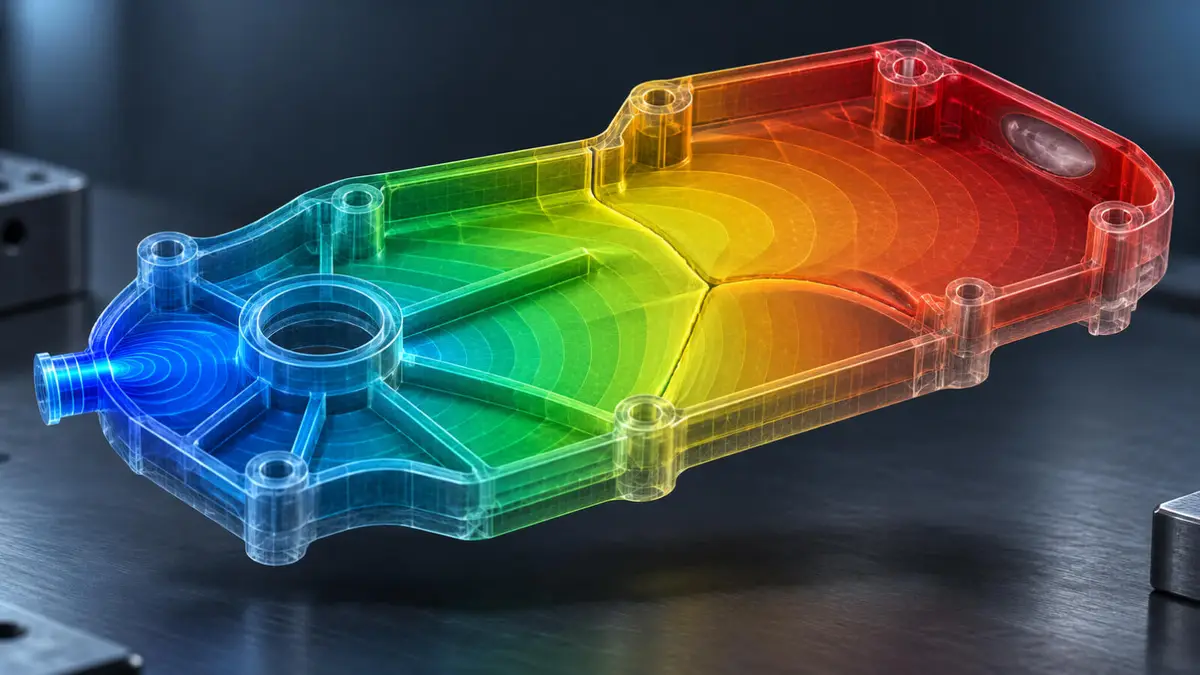

Mold flow analysis simulation showing fill contours, melt fronts and a weld line in a plastic part.

Definition of Mold Flow Analysis

Mold flow analysis is a computer simulation that predicts how molten plastic will fill, pack, cool and shrink inside a tool before any steel is cut. The software models your part geometry with the resin you intend to use, then reports where the material fronts meet, where air becomes trapped, how long the part takes to cool and how far it is likely to warp.

Engineers read these results to move a gate, resize a runner, add a vent or adjust a wall section while such changes still cost hours rather than weeks. For buyers sourcing tooling in Taiwan and Southeast Asia, where the builder is rarely in the room with your design team, the report is also a practical way to settle a disagreement about part design on evidence instead of opinion.

Mold flow analysis does not replace a physical trial, and no simulation predicts every outcome, but it removes the class of problems you would otherwise meet at first sampling.

Why Mold Flow Analysis Matters for Your Business

A change made in simulation costs an engineer an afternoon, while the same change made in hardened steel costs days of welding and remachining. Correcting a gate position after the fact also leaves a repair in a surface your own customer may be able to see.

The commercial case is clearest on parts that are large, thin-walled, cosmetic or dimensionally tight. On a simple bracket with generous tolerances you can reasonably decide against it. On a housing with a cosmetic finish and a snap fit that has to hold, the analysis tends to pay for itself at the first trial.

It is worth asking who performs the analysis and who owns the report. Where the tool builder runs it in house at no separate charge, confirm that you receive the file, since the same data supports any later discussion about process settings, warp or a transfer to another molder.

Related Terms

Injection Mold CostMold Trial StagesWeld Line
Mold flow analysis earns its place whenever a defect found at first trial would be expensive to correct, which in practice means large parts, thin walls, tight flatness requirements, cosmetic surfaces and any part whose wall section changes sharply. Simple parts with forgiving tolerances rarely justify it. The other case for running one is commercial rather than technical, since a simulation report settles a disagreement about whether a design is moldable faster than an exchange of opinions will. A number of Taiwanese tool builders include a basic study within the tooling price for parts above a certain complexity, so ask before treating it as an extra.
Mold flow analysis appears either as a line item or absorbed into the tooling price, and which you see depends on the builder rather than on the work involved. A single-gate study on a moderate part occupies an engineer for a day or two, while a fuller study covering several gate options, cooling layout and warp prediction takes longer and is quoted accordingly. Set against a tool costing tens of thousands of dollars, the analysis is a small proportion, and it normally costs less than one cavity weld repair with a repeat trial behind it. Where a supplier declines to run it on a part you consider difficult, that answer tells you something in itself.
Mold flow analysis works from a model of your part and your resin, so its accuracy rests on both being right. Material data for a specific supplier grade is not always held in the software library, and a substitution shifts the results. The simulation also assumes the tool is built and cooled as drawn, which means it will not warn you about a blocked cooling channel, a worn check ring on the machine or an operator running the cycle short. Ambient conditions, regrind content and colorant loading all affect real parts and sit outside most studies. Treat the report as a guide for tooling decisions rather than as a guarantee of first-shot approval.
